Material basis and molecular mechanisms of Chaihuang Qingyi Huoxue Granule in the treatment of acute pancreatitis based on network pharmacology and molecular docking-based strategy

1 Introduction

Acute pancreatitis (AP) is a digestive disorder that has a widespread occurrence and can be extremely serious, even leading to death. The condition is distinguished by abrupt abdominal ache and increased levels of pancreatic enzymes in the blood (1). Despite the progress made in comprehending the development of AP and enhancing its medical treatment, the occurrence and fatality rates of AP persistently rise (2, 3). Currently, Western medical treatments for AP mainly focus on acid suppression, inhibition of pancreatic enzyme secretion, antispasmodics, and pain relief. Further studies are required to explore multiple methods of treating AP. Several research studies have shown the effectiveness of traditional Chinese medicine (TCM) for treating AP. TCM is a cost-effective option with minimal side effects (4, 5), deserving further study.

The Department of Gastroenterology at the Affiliated Traditional Chinese Medicine Hospital of Southwest Medical University utilizes an in-house remedy called Chaihuang Qingyi Huoxue Granule (CH) to effectively treat cases of severe acute pancreatitis (6). It contains 14 Chinese herbs, Chaihu (Bupleurum), Houpu (Magnolia Bark), Chishao (Red Peony Root), Dahuang (Rhubarb), Taoren (Peach Kernel), Danshen (Salvia miltiorrhiza), Gancao (Licorice Root), Yanhusuo (Corydalis Yanhusuo), Huangqi (Astragalus Root), Huangqin (Scutellaria Baicalensis Root), Zhishi (Immature Bitter Orange), Zhizi (Gardenia Fruit), Baishao (White Peony Root), and Pugongying (Dandelion). For numerous years, CH has been utilized in clinical settings to treat AP. Evidence (7, 8) has shown that CH can regulate gastrointestinal motility and inhibit the production and release of pro-inflammatory factors, thereby alleviating AP. However, the precise chemical composition and exact mechanisms of action have yet to be fully elucidated.

Network pharmacology and molecular docking were effective methods that utilize advanced computer simulations to identify components and predict drug targets. In this study, the active ingredients of CH were identified through data mining, targeting identification, and the establishment of a comprehensive network. Additionally, enrichment analysis using GO and KEGG revealed the involvement of the PI3K/Akt signaling pathway, thereby predicting the potential mechanism of CH in treating AP. Subsequently, a series of animal experiments, including HE staining, WB, ELISA, TUNEL, etc., were conducted to validate that CH could inhibit the activation of the PI3K/Akt signaling pathway, induce apoptosis of pancreatic acinar cells, reduce inflammatory reactions, and mitigate damage in AP model rats. This suggests that network pharmacology can be an effective approach to elucidate the mechanism of action of CH in treating AP. The research route is illustrated in Figure 1.

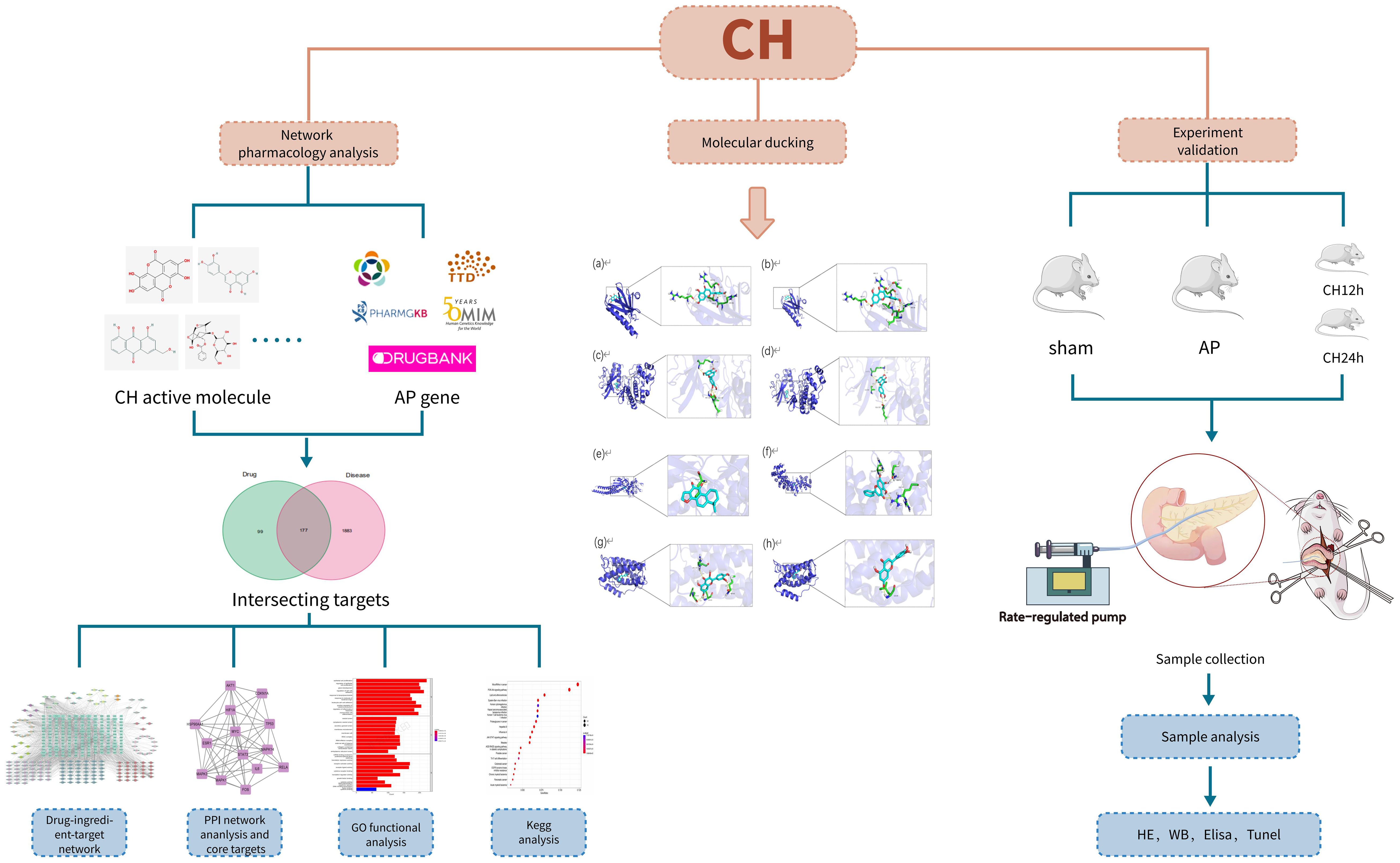

Figure 1 All technical approaches rely on network pharmacology and experimental verification.

2 Materials and methods2.1 Network pharmacology predictions2.1.1 Data mining for chemical ingredients

Information regarding the specific plants in CH was extracted from the Traditional Chinese Medicine System Pharmacology Database (TCMSP) (9). The molecular structures of every compound were obtained from the NCBI PubChem database (10) and confirmed through thorough research in literature. It is crucial to evaluate the absorption, distribution, metabolism, and excretion characteristics of every compound in order to identify the active components of CH and examine their functional foundation. For this investigation, we opted for oral absorption (OA) and drug similarity (DS). For the purpose of further analysis, molecules with OB ≥ 30% were chosen in this particular section (11). In TCM research, the DL threshold of 0.18, which is based on the average value of all compounds in the DrugBank database (12), is widely used as a screening standard for identifying ‘drug-like’ compounds.

2.1.2 Compounds target fishing

In this process, the active ingredients filtered out early were used as bait to identify the corresponding targets in the TCMSP and DrugBank databases. Afterwards, the UniProt KB (13) was used to map all stationary objectives and acquire their official gene symbols.

2.1.3 Disease targets database building

The Gene Cards database (14), OMIM database (15), PharmGkb database (16), TTD (17, 18), and DrugBank database were used to screen AP-related targets. We combined the targets from these five databases, removed duplicate targets, and identified the disease targets related to AP. In this section, the search was conducted using the keywords “acute pancreatitis” and selection of species condition for “homo sapiens” as a supplement. Subsequently, the retrieved targets were mapped to UniProt KB to obtain the corresponding official gene symbols.

In the end, we compared the projected goals of CH active components with the targets related to AP and chose the common targets as potential therapeutic targets for CH. A Venn diagram of the targets was plotted and visualized using FunRich software in the CH-AP network. Subsequently, the common targets were processed for additional analysis.

2.1.4 Enrichment analysis of gene ontology and KEGG pathway

In order to delve deeper into the possible molecular mechanism of CH, we conducted GO enrichment analysis and KEGG signaling pathway analysis. This involved connecting the chosen possible targets to the Database Visualization and Integrated Discovery system (DAVID) Bioinformatics Resources 6.8 (19). Only the terms with P < 0.05 significance level were taken into account in this particular section. The overlapping targets were plotted using R language, and the GO results were represented using a bar chart, while the KEGG analysis results were represented using a bubble chart.

2.1.5 Network construction and analysis

Drug-compound-target (D-C-T) network of CH was created by establishing connections between active compounds and their potential targets using Cytoscape v3.9.1 software (20), a robust tool frequently employed in bioinformatics research for data integration and visualization. Nodes in graphical networks depict compounds and targets, while edges represent depict interactions between the compound and target. Moreover, ‘degree’, a crucial topological parameter in network pharmacology, was examined using the CytoNCA plugin of Cytoscape. The degree of a node indicates the total number of other nodes that interact with it.

Construction of a network for the interaction between proteins (PPI) was carried out to identify potential therapeutic targets of the active components in CH. The STRING database (21) was utilized for this purpose. The settings for network analysis consisted of choosing the mode of analysis as ‘Multiple proteins’, selecting ‘Homo sapiens’ as the species, and setting a confidence score of at least 0.95. Isolated proteins were excluded, and the results were saved as a TSV file. Afterwards, we employed the Cytoscape 3.9.1 application to exhibit the protein-protein interaction (PPI) network. To pinpoint the main targets, we carried out network topology analysis through the “Network Analyzer” module in Cytoscape. Different parameters, including Betweenness (BC), Closeness (CC), Degree (DC), Eigenvector (EC), local average connectivity-based methods (LAC), Network (NC), and Information (IC), were used to establish the main objectives. During this process, the core targets were identified by assessing the degree of each node in the network.

After conducting the KEGG pathway analysis on the potential targets identified in the DAVID database, the Compound-Target-Pathway (C-T-P) network was built in Cytoscape 3.9.1. This network connected the top 30 KEGG signaling pathways with their respective targets. Nodes in graphical networks represent compounds, targets, and signaling pathways, while edges represent C-T-P interactions. A node’s significance in the network is indicated by a higher degree value.

2.1.6 Molecular docking verification of core components and targets

The network known as the ‘Compound-Target-Pathway (C-T-P)’ was employed to discover compounds and their possible targets. These targets were subsequently analyzed through molecular docking investigations with AutoDock Vina (22). Molecular docking involves several steps. Initially, the PDB database (23) was utilized to acquire the three-dimensional arrangement of the main protein of interest. Second, this structure was imported into PyMOL software to eliminate water molecules and inactive ligands. Following this, the structure was loaded into AutoDockTools software for hydrogenation and charging, and finally saved in PDB format. Third, the target proteins and the components of CH were transformed into the pdbqt file format, which is in line with AutoDock Vina’s compatibility. To facilitate the docking of the target protein’s active site, the size and coordinates of the Grid Box were adjusted. Subsequently, the active components of CH were docked onto the active site of the target protein. Finally, the components that had the best binding energy and strongest affinity towards the target proteins were selected. Using the PyMOL software, we visualized the docked complexes of the selected elements.

2.2 Experiment validation2.2.1 CH preparation

Each bag of CH contains 7 g. The recommended dosage for adults with AP is 42 g, three times per day. In the case of rats, the equivalent dosage was 6.3 times that in adults. Therefore, the dosage of CH in the rats was approximately 0.7 g/kg.BW × 6.3 ≈ 4.4 g/kg.BW = 0.44 g/100g.BW. CH was dissolved in saline at a 0.44 g/mL concentration. The rats were gavaged with 1 mL of the solution per 100 g of body weight.

2.2.2 Reagents

Sodium taurocholate (Item No. The purity of 97-98% was acquired from Beijing Bioway Technology Co., Ltd. The CH ready-to-use granules were obtained from the Affiliated Traditional Chinese Medicine Hospital of Southwest Medical University. Ruixin Biotech was the source of the purchased ELISA kits (RX302856R, RX302869R, and RX302058R). An apoptosis detection kit (T-6013) was purchased from UElandy (China). Antibodies against p-PI3K (ab182651) were purchased from Abcam (Cambridge, USA). The β-actin antibody (AT0040) was purchased from Engibody (USA). Proteintech (USA) provided the antibodies for phosphoinositide 3-kinase (PI3K) (60225-1-Ig), Bcl-2 (68103-1-Ig), P-P65 (82335-1-RR), and P65 (10745-1-AP). Cell Signaling Technology (Danvers, MA, USA) was the source of the purchased antibodies targeting Bax (14796S), AKT (8200S), and p-Akt (8200S). All additional substances utilized in this research were of analytical quality and obtained from nearby vendors.

2.2.3 Animal experiment2.2.3.1 Animals

A total of sixty male Sprague-Dawley rats, averaging 200 ± 20 g in weight, were acquired from the Animal Ethics Committee at Southwest Medical University. The animals were housed in a pathogen-free facility, where the humidity levels were kept between 40% and 70%, the temperature was sustained at 22 ± 2°C, and a 12-hour light-dark cycle was adhered to. The rats were given standard rodent feed and had unrestricted access to water during the experiment. The Animal Ethics Committee of the Southwest Medical University (NO.20221222-002) granted approval for all animal experiments. All rats were subjected to a 12h fasting period in both the pre-modeling and post-modeling phases.

2.2.3.2 Experimental design and induction of AP

The animals were allocated at random to two primary groups: a 12h group (n=30) and a 24h group (n=30). Each primary group was subsequently divided into three subgroups: sham (n=10), AP (n=10), and CH (n=10). AP was induced in the AP model group through the injection of 3.5% sodium taurocholate into the pancreaticobiliary duct in a retrograde manner (24). The control group received an identical surgical intervention, with the exception that they were given 0.9% saline instead. In the CH group, CH (1 mL/100 g.BW) was administered by gavage 6h after modeling. Samples of blood and pancreatic tissues were obtained at 12 and 24 hours following administration via gavage.

2.3 Experiment assay2.3.1 Pancreatic histopathology and scoring

The pancreas tissue was preserved in a 4% solution of paraformaldehyde, underwent dehydration using a gradient method, was embedded in paraffin wax. Hematoxylin and eosin (HE) staining was performed on thick sections sliced to a 5 μm thickness. Pancreatic abnormalities following HE staining were evaluated by two pathologists using the Schmidt pathology scoring criteria (25) under a light microscope, employing a double-blind approach. Five randomly selected fields were assessed to determine the scores for edema, inflammation, and necrosis. Ultimately, the mean score was used to quantify the extent of damage.

2.3.2 TdT-mediated dUTP Nick-end labeling assay

The paraffin sections were deparaffinized in water. Proteinase K was used to permeabilize the tissues. The TUNEL reaction solution was applied to tissues and incubated in the dark. Finally, the sections were sealed after DAPI counterstaining. Fluorescence microscope was utilized to capture images and ImageJ software was employed for quantification.

2.3.3 Western blot

Protein specimens were obtained by utilizing RIPA lysis solution comprising of protease and phosphatase inhibitors, and protein concentration was ascertained utilizing a BCA assay kit. Following the electrophoretic separation of proteins, PVDF membranes were utilized to facilitate their transfer. Next, the antibodies were encapsulated with 5% BSA for a duration of 30 minutes. Subsequently, the membrane was incubated with the specified antibodies at 4°C overnight. After undergoing three 10-minute washes with TBST, the membrane underwent incubation with a secondary antibody conjugated with horseradish peroxidase for a duration of 2 hours. Subsequently, the membrane was washed again and subjected to incubation with an ECL chemiluminescent substrate to facilitate imaging. The obtained images were analyzed using the ImageJ software.

2.3.4 The enzyme-linked immunosorbent assay and blood biochemistry

ELISA was used to detect the serum levels of interleukin (IL)-6, IL-1β, and tumor necrosis factor-alpha (TNF-α) in accordance with the manufacturer’s guidelines. Additionally, an automated biochemical analyzer was utilized to measure the levels of serum amylase and lipase.

2.4 Statistics

We calculated the mean ± standard deviation using the statistical tool GraphPad Prism 9.5. The variance was calculated to satisfy the normal distribution of the data, and one-way ANOVA (One-Way ANOVA) was chosen when the variance was uniform; the Kruskal-Wallis H test was used to do a nonparametric test for multiple independent samples when none of the conditions were met. The statistical significance level was established to be below 0.05 and identified as P < 0.05.

3 Results3.1 Network pharmacology prediction analysis3.1.1 Active compounds and targets in CH

By screening the TCMSP database, a total of 168 active components and 276 targets were identified. The results indicate that most of the compounds interact with multiple targets (Supplementary Table S1). The active components of Baishao, Chaihu, Chishao, Dahuang, Danshen, Gancao, Houpu, Huangqin, Huangqi, Taoren, Yanhusuo, Zhishi, and Zhizi were 3, 7, 8, 5, 28, 40, 2, 13, 7, 16, 42, 4, and 7, respectively. The 10 molecules with the highest OB scores are listed in Table 1.

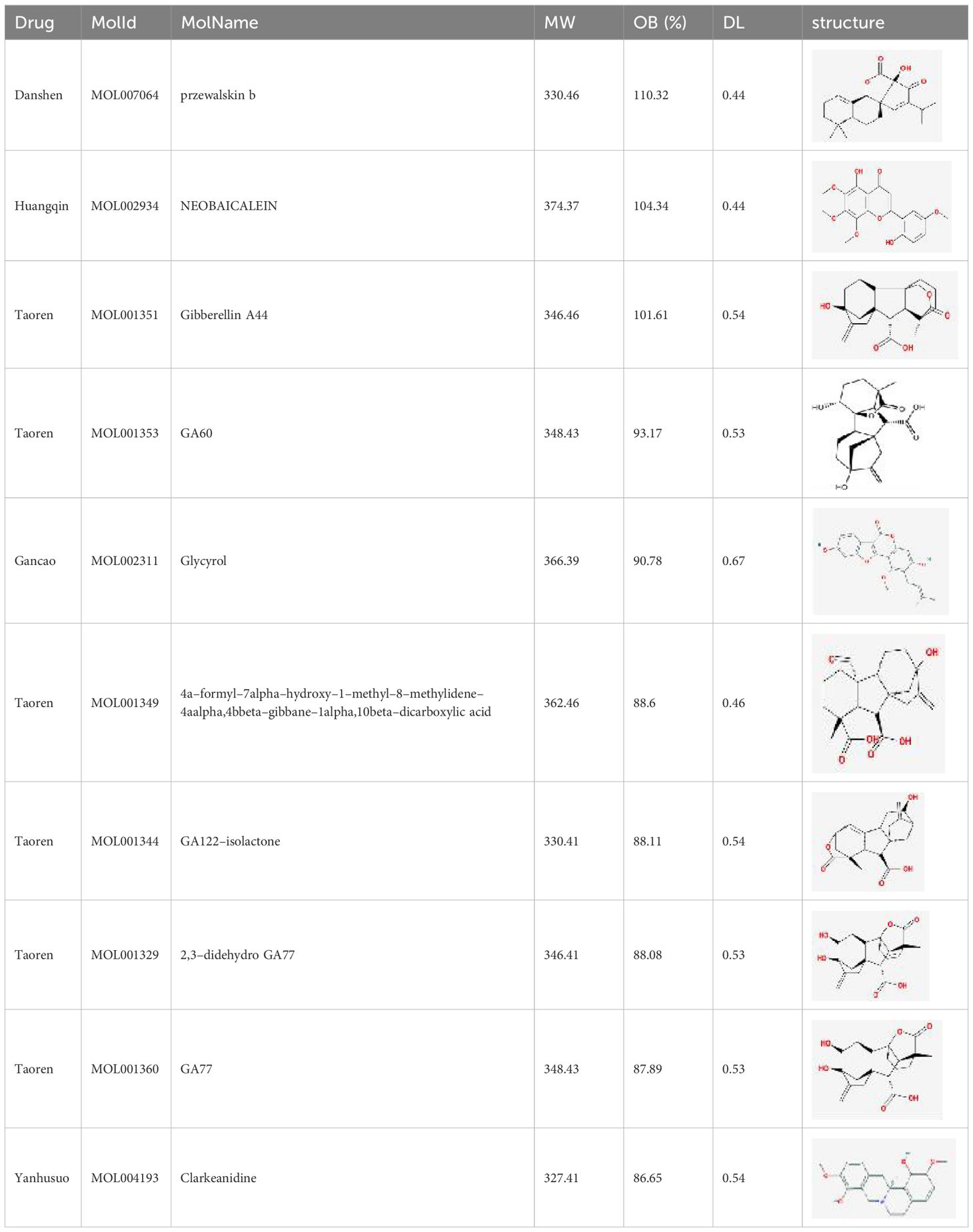

Table 1 Representative molecules from CH and their corresponding OB, DL, and structures.

3.1.2 Disease target selection and Venn diagram

By eliminating duplicates, we acquired a grand total of 1986 disease targets from the GeneCards database using a relevance score of ≥10. Out of these, 2060 targets were obtained, including 143 targets from the OMIM database, 112 targets from the PharmGkb database, 9 targets from the TTD database, and 6 targets from the DrugBank database. We identified overlapping targets to select 177 potential therapeutic targets for treating AP between the compound and AP-related targets, as shown in Supplementary Table S2. The corresponding Venn diagram is shown in Figure 2A.

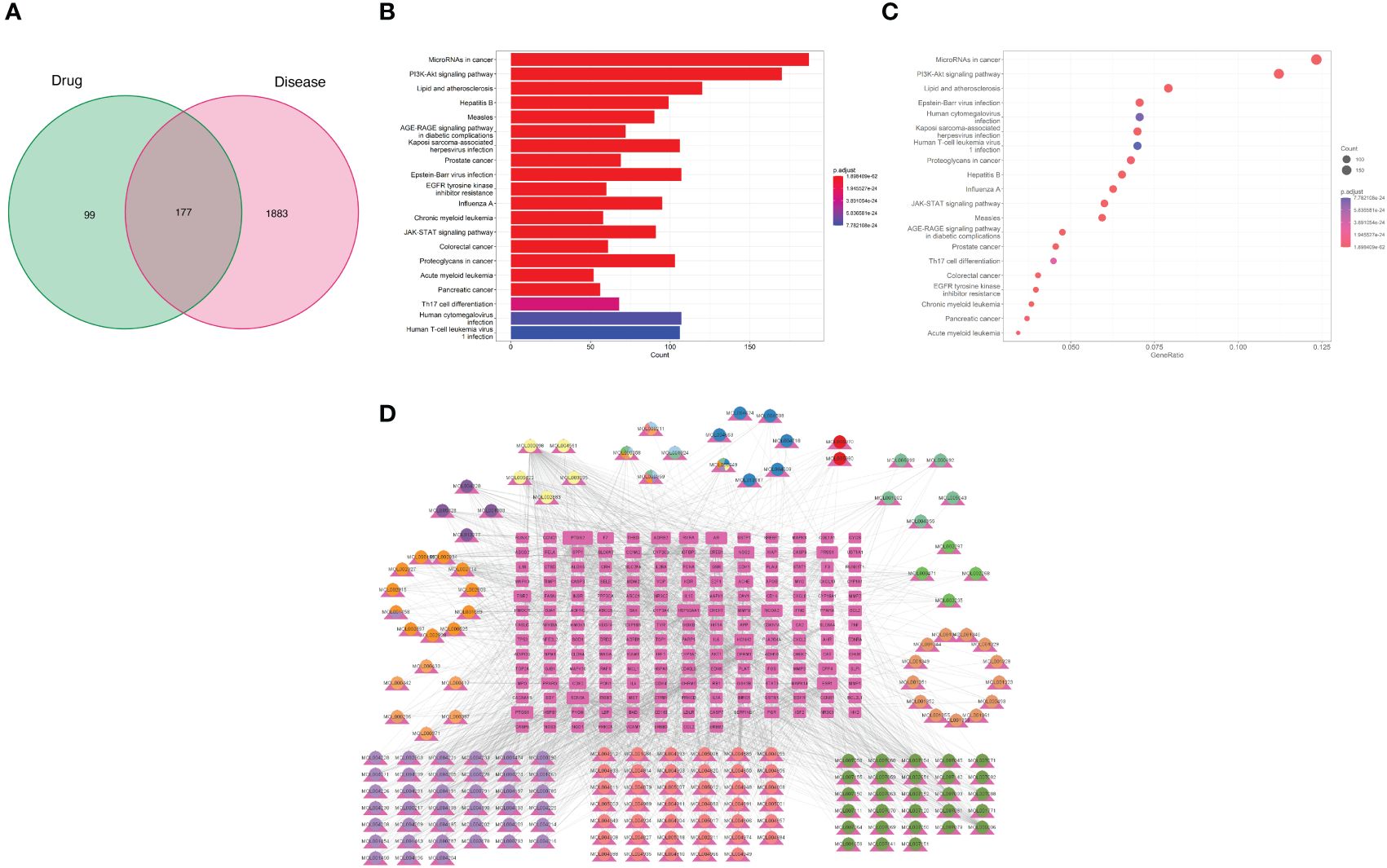

Figure 2 (A) Venn diagram of active compounds and AP–related targets. The green areas represent the number of active compound targets, the pink areas represent the number of AP–related targets, and the overlapping part is the number of their common target genes. (B) GO functional enrichment analysis to show the top 10 enriched BP, CC, and MF GO terms. (C) Generate a bubble chart illustrating the 20 most enriched KEGG pathways. (D) The “Drug–Ingredient–Target” network diagram predicts the active compounds of drugs and potential targets of CH effective in treating AP.

3.1.3 GO and KEGG pathway enrichment analysis

DAVID’s GO analysis yielded three distinct categories: biological processes (BP), cellular constituents (CC), and molecular functions (MF), revealing a total of 4544, 269, and 439 identified terms in each category, respectively. The top 10 GO terms significantly enriched in each stratum can be found in Figure 2B. The results showed that BP was most related to epithelial cellular proliferation, CC was most related to the vesicle lumen, and MF was most related to mRNA blinding involved in post-transcriptional gene splicing.

In order to enhance our comprehension of the pharmacological mechanism of CH for AP treatment at the signaling pathway level, we conducted KEGG analysis. This analysis unveiled that the chosen 177 potential targets were significantly present in 186 pathways, encompassing the PI3K/AKT signaling pathway (hsa04151), AGE/AGE signaling pathway (hsa04933), JAK/TAT signaling pathway (hsa04630), and TNF signaling pathway (hsa04668). The top 30 most significantly enriched pathways are shown (P<0.05, ordered by gene count) in Figure 2C. A comprehensive overview of the PPI data is available in Supplementary Table S3.

3.1.4 Construction and analysis of the D-C-T network

Cytoscape 3.9.1 was used to construct and visualize the D-C-T network of the active CH compounds and potential targets, which includes common targets between compound targets and AP-related targets. In this section, the 181 compounds linked to potential targets are presented in the network diagram. Figure 2D illustrates a network consisting of 358 nodes, including 181 compounds and 177 potential targets, connected by 1832 edges. The key compounds of CH can be considered as the ones that showed strong interactions in the C-T network. These compounds are from Baishao, Chaihu, Chishao, Dahuang, Danshen, Gancao, Houpu, Huangqin, Huangqi, Taoren, Yanhusuo, Zhishi, and Zhizi, with the numbers 3, 7, 8, 5, 28, 40, 2, 13, 7, 16, 42, 4, and 7, respectively. 148 different herb ingredients targeted prostaglandin G/H synthase 2 (PTGS2), while heat shock protein (HSP) 90-alpha (HSP90AA1), sodium channel protein type 5 subunit alpha (SCN5A), prostaglandin G/H synthase 1 (PTGS1), and nuclear receptor coactivator 2 (NCOA2) were targeted by 89, 83, 82, and 74 herb ingredients, respectively. This implies that the synergistic therapeutic effect on AP is achieved by multiple CH compounds.

The ingredients of CH are represented by the outer nodes in Figure 3, while the common targets between the drug and the disease are represented by the middle nodes. The CH formula uses various colors to represent different herbal medicines: navy blue for Chaihu (Bupleuri Radix), crimson for Houpo (Magnoliae Officinalis Cortex), pale green for Chishao (Paeoniae Radix Rubra), vibrant green for Dahuang (Rhei Radix et Rhizoma), ochre yellow on the right for Taoren (Persicae Semen), dark green for Danshen (Salviae Miltiorrhizae Radix et Rhizoma), rose for Gancao (Glycyrrhizae Radix et Rhizoma), lavender for Yanhusuo (Corydalis Rhizoma), yellow on the left for Huangqi (Astragali Radix), golden yellow for Huangqin (Scutellariae Radix), deep violet for Zhishi (Aurantii Fructus Immaturus), pale yellow for Zhizi (Gardeniae Fructus), and sky blue for Baishao (Paeoniae Radix Alba).

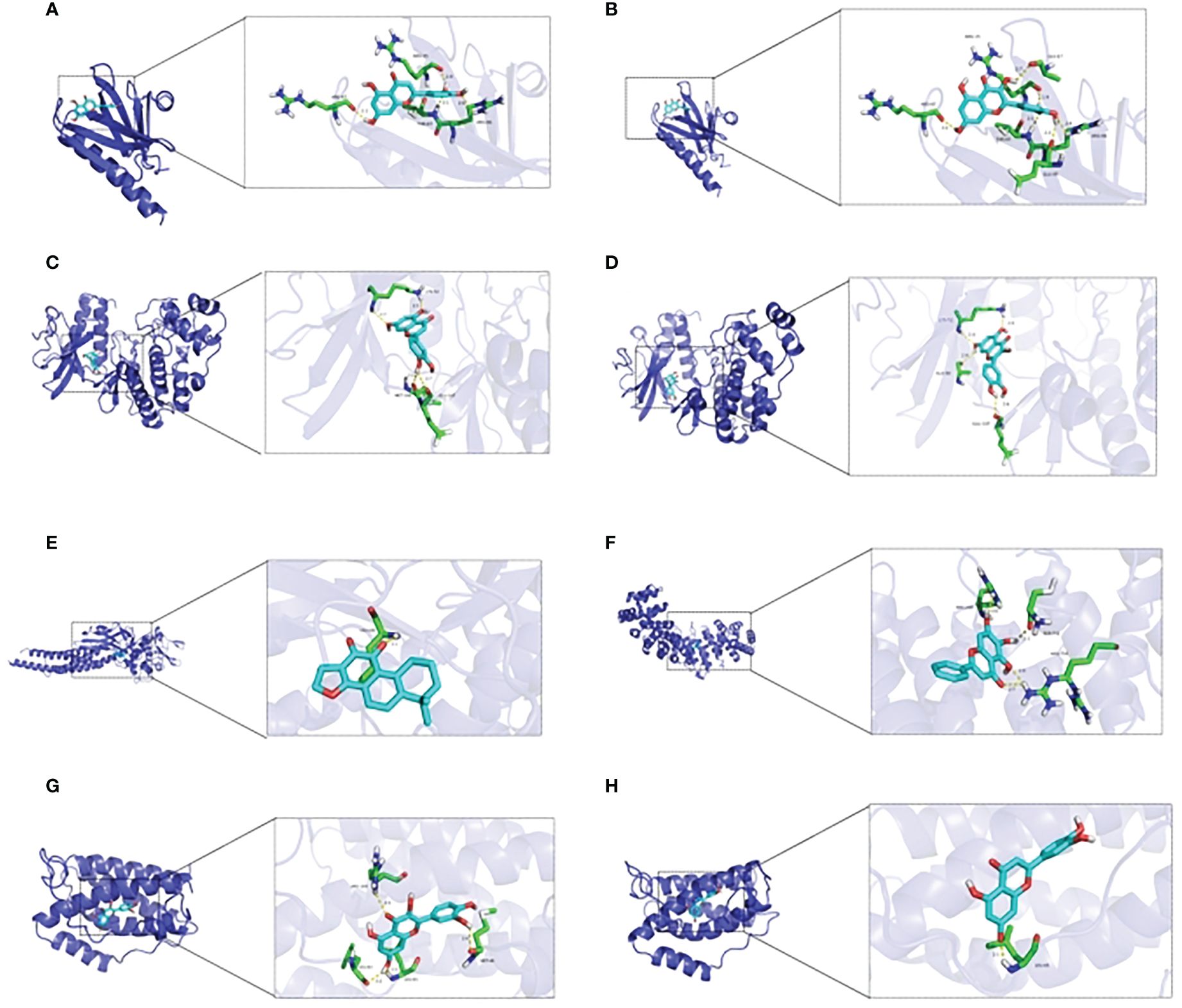

Figure 3 Molecular docking between essential elements of CH and crucial targets illustrated through schematic diagrams. The molecular docking diagrams of luteolin and AKT1, quercetin and AKT1, luteolin and MAPK1, quercetin and MAPK1, cryptotanshinone and STAT3, baicalein and HIF–1, quercetin and IL6, and luteolin and IL6 are represented by Note (A–H) respectively.

3.1.5 Construction and analysis of the PPI network

Utilization of the STRING database, a PPI network of the chosen 177 potential targets was established based on the aforementioned methods according to the minimum required interaction score ≥ 0.95 with isolated nodes hidden in the network in Figure 4B. In CytoNCA, different measures such as betweenness (BC), closeness (CC), degree (DC), eigenvector (EC), local average-connectivity-based methods (LAC), networks (NC), and information (IC) were utilized for the scoring and filtering procedures. Each gene was required to surpass its median value for retention. This scoring and filtering process was performed thrice in Figure 4A. Ultimately, 14 core target genes were identified (STAT3, IL6, MYC, CDKN1A, AKT1, MAPK1, MAPK3, MAPK14, HSP90AA1, HIF1A, ESR1, TP53, FOS, and RELA) comprising 14 nodes and 60 edges. Detailed information on PPI data is presented in Supplementary Table S4.

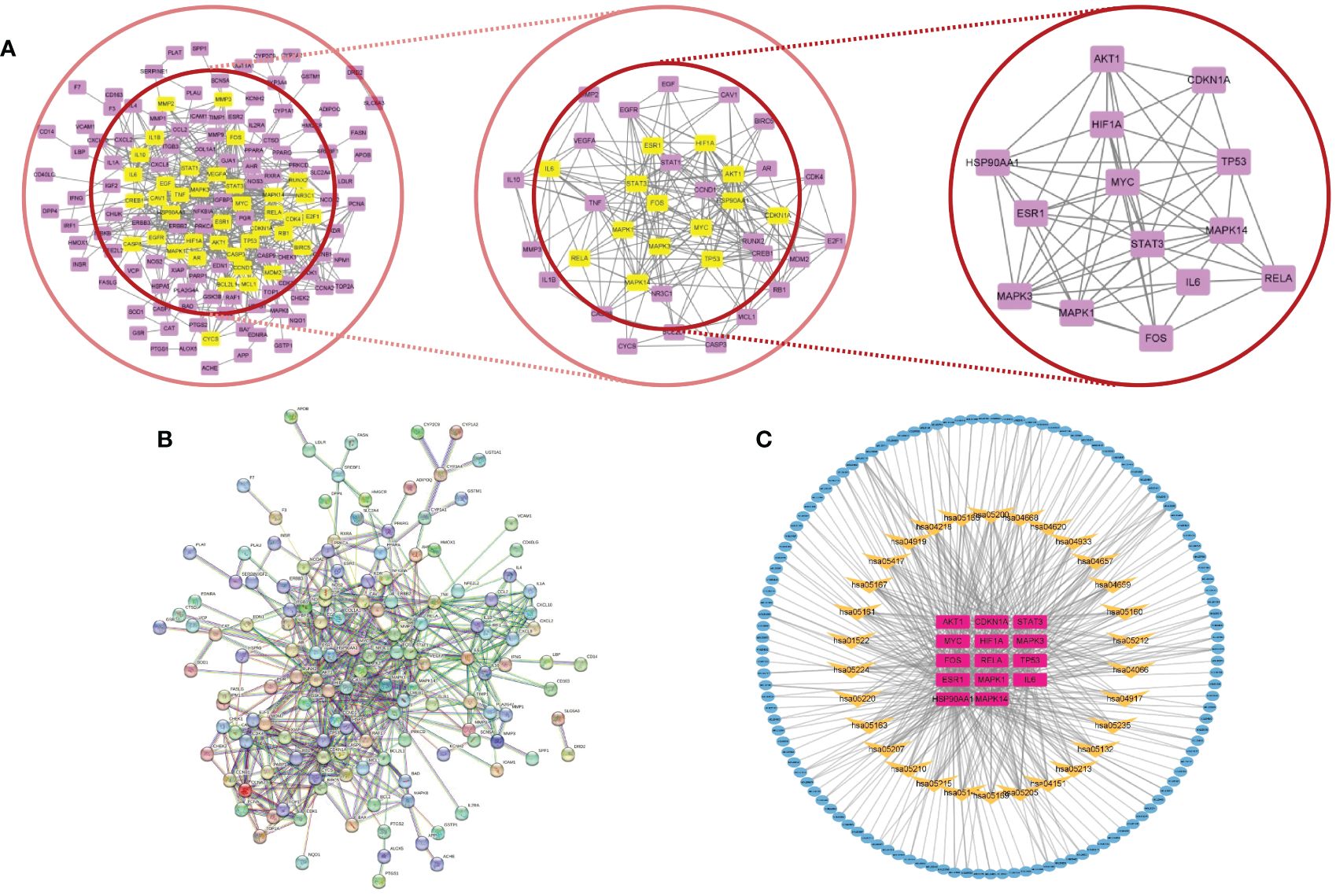

Figure 4 (A) Core subnetwork diagram of the target of CH for the treatment of AP. (B) PPI network of the target of CH for the treatment of AP. (C) The network called C–T–P is made up of 165 nodes and 485 edges. Blue nodes denote the active compounds. Yellow nodes denote the pathways, while purple nodes indicate core targets.

3.1.6 Construction and analysis of the C-T-P network

The 14 core targets identified in the PPI network were linked to their corresponding compounds in the DCT network through the top 30 KEGG pathways, as depicted in Figure 4C. The C-T-P network that was obtained consisted of 165 nodes, comprising 121 compounds, 14 targets with potential, and 30 pathways for signaling. Additionally, there were 485 edges in the network. Additional examination uncovered that the chosen possible objectives had a strong connection with the PI3K/AKT (hsa04151, degree = 15), TNF (hsa04668, degree = 12), IL-17 (hsa04657, degree = 9), and HIF-1 (hsa04066, degree = 9) signaling pathways. The involvement of these pathways is crucial in the advancement of AP and various other inflammatory conditions.

3.1.7 Molecular docking validation

From the C-T-P network, we identified the top three selected compounds and their corresponding target proteins, and conducted a molecular docking validation. Specifically, the target proteins chosen for docking overlapped with key target proteins in the PPI network. Table 2 displays the outcomes of molecular docking. A lower docking score indicates a stronger ligand-receptor binding affinity, signifying a higher likelihood of interaction. All the binding energy scores between the active compounds and the key target proteins were less than -5.0 kJ/mol. The 3D binding models of each target protein and compound are shown in Figure 3. Additionally, the docking diagrams of the compound-target proteins suggested possible intermolecular interactions between the core compounds and protein targets.

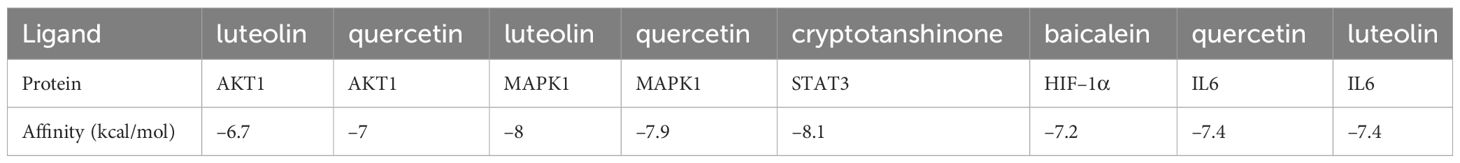

Table 2 The affinity of compounds and targets.

3.2 The experimental verification of the network pharmacology results3.2.1 Effects of CH on pancreatic pathological changes

According to the findings shown in Figure 5A, the group with AP demonstrated significantly elevated serum amylase and lipase levels compared to the sham group. However, the administration of CH resulted in decreased levels. Moreover, the AP model group exhibited notably elevated levels of edema and inflammation compared to the group that underwent a sham operation. However, the administration of CH resulted in a decreased level of pancreatic pathological harm, which involved decreased swelling, inflammation, and tissue death, along with a decrease in pathological scores (P < 0.05) (Figures 5B, C). Collectively, these results demonstrate that CH alleviates pancreatic tissue inflammation and mitigates pathological damage in AP rats.

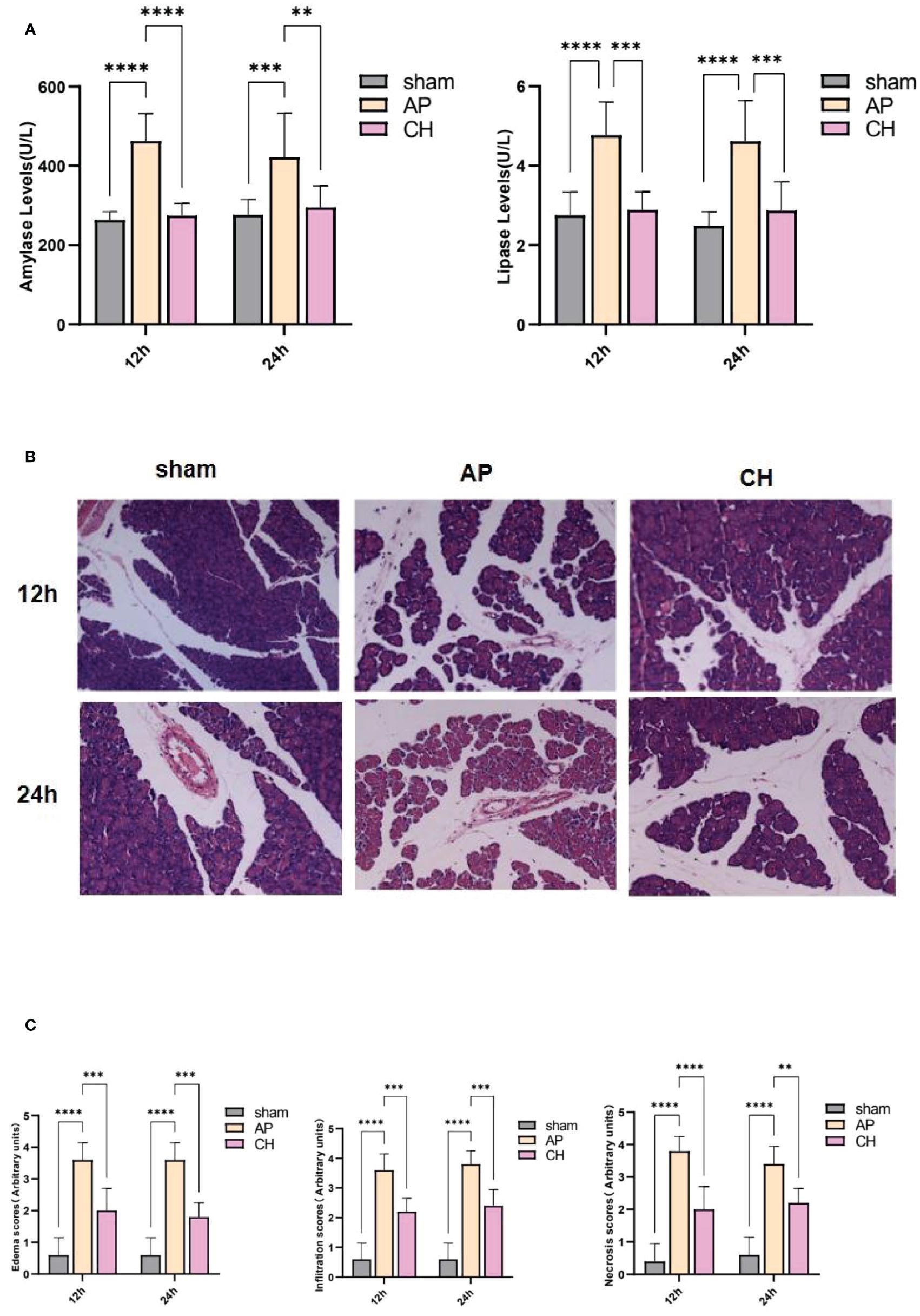

Figure 5 CH treatment attenuated AP. (A) Serum levels of amylase and lipase in different groups. The data presented above represent the average ± SD (n = 6) for each group, with **P < 0.01, ***P < 0.001, and ****P < 0.0001 compared to the AP group. (B) HE staining (200×) was used to examine the pancreatic pathology in rats from various groups. (n = 5). (C) Corresponding pathological score. The data presented above represent the average ± SD (n = 5) for each group, with **P < 0.01, ***P < 0.001, and ****P < 0.0001 compared to the AP group.

3.2.2 Effect of CH on the expression of TNF-α, IL-6, and IL-1β

According to Figure 6, the AP group showed significantly raised levels of serum TNF-α, IL-6, and IL-1β in comparison with the sham group. However, the administration of CH resulted in a decrease of these levels. Over time, the levels of TNF-α, IL-6, and IL-1β in the AP group exhibited a substantial growth (P < 0.05).

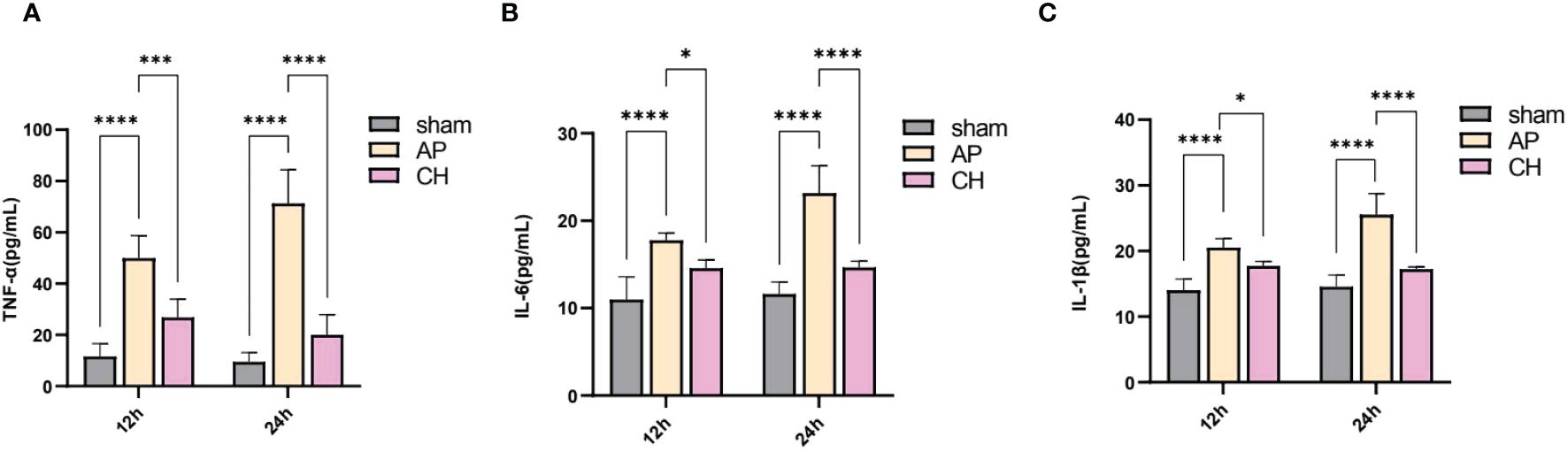

Figure 6 Effect of CH treatment on inflammation in AP rat model. (A) Serum levels of TNF–α among various groups. The data presented above are represented as the average ± SD (n = 5). ***P < 0.001 and ****P < 0.0001 compared to the AP group. (B) Serum levels of IL–6 among various groups. The data presented above are represented as the average ± SD (n = 5). *P < 0.05 and ****P < 0.0001 compared to the AP group. (C) Serum concentrations of IL–1β among various groups. The data presented above are represented as the average ± SD (n = 5). *P < 0.05 and ****P < 0.0001 compared to the AP group.

3.2.3 Effect of CH on the PI3K/AKT signaling pathway

The levels of PI3K, AKT, and NF-ϰB proteins did not show any notable differences among the sham, AP, and CH groups (Figure 7). However, the AP model group exhibited considerably elevated levels of protein phosphorylation compared to the sham group. Conversely, the intervention group CH demonstrated notably reduced levels of phosphorylation among the proteins PI3K, AKT, and NF-ϰB.

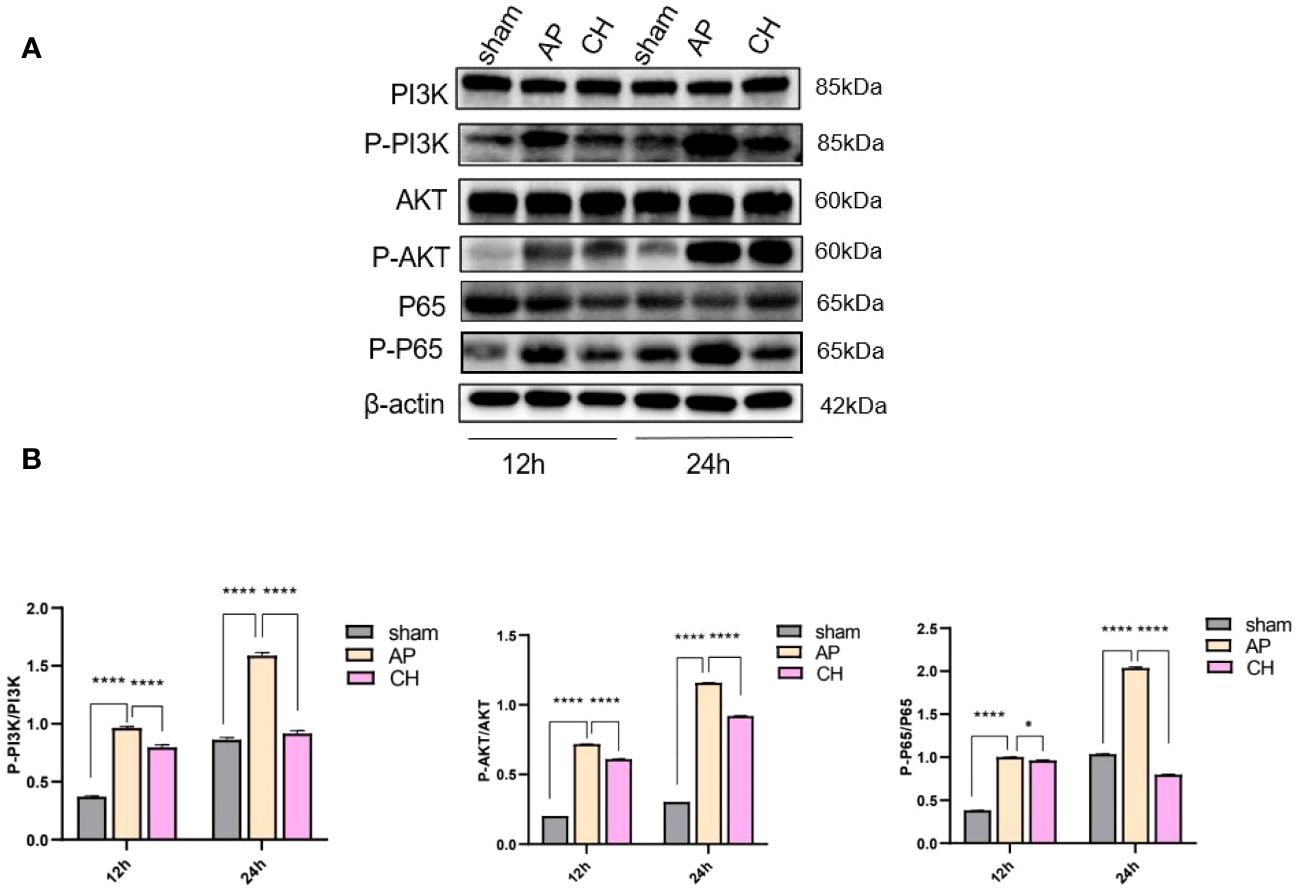

Figure 7 The impact of CH on the PI3K/AKT signaling pathway in the AP model. (A) Expression of PI3K, p–PI3K, AKT, p–AKT, P65, p–P65, and β–actin in different groups. (n = 3). (B) Ratios of p–PI3K/PI3K, p–AKT/AKT, and p–P65/P65 that correspond. The data presented above are represented as the average ± SD (n = 3). *P < 0.05 and ****P < 0.0001 compared to the AP group.

3.2.4 Effect of CH on cells apoptosis

TUNEL staining was used to analyze apoptosis of acinar cells. Pancreatic acinar cells underwent apoptosis upon the induction of sodium taurocholate, as depicted in Figure 8A. After CH treatment, the incidence of TUNEL-positive cells has significantly increased, unlike the AP group (Figure 8B). Furthermore, the western blot analysis demonstrated that the CH group exhibited markedly elevated levels of the pro-apoptotic protein Bax, while displaying notably reduced levels of the anti-apoptotic protein BCL-2 in comparison to both the sham and AP groups. This indicates that CH significantly enhanced apoptosis in acute pancreatitis. (Figures 8C–E)

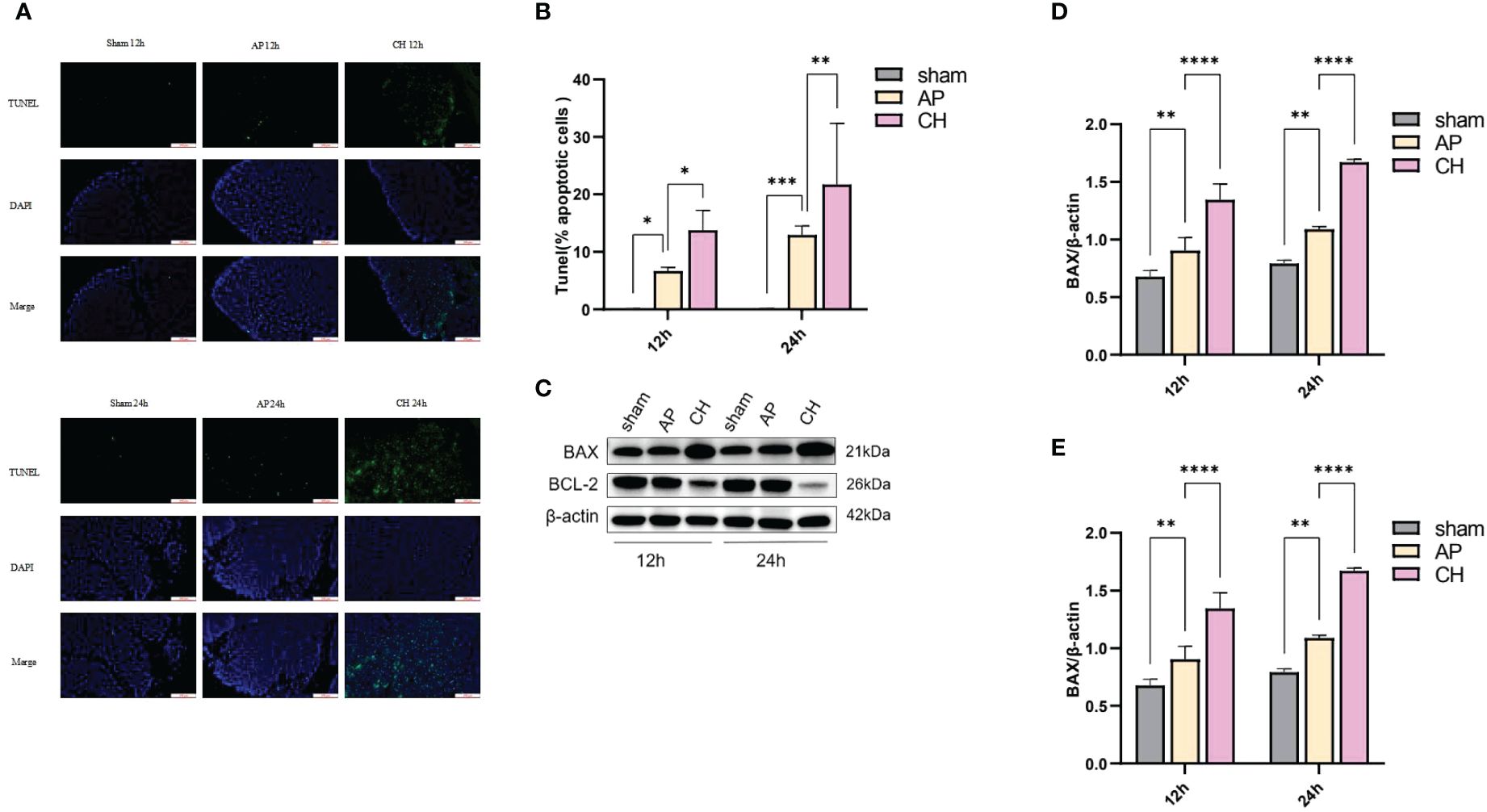

Figure 8 Administration of CH increases the apoptosis of pancreatic acinar cell in rats with AP. (A) Images from the TUNEL assay of pancreatic tissue, 100 μm scale bar. (n = 6). (B) Statistical results on the proportion of pancreatic acinar cells undergoing apoptosis in each group. Mean ± SD (n = 6) data were reported for each group, and statistical significance was observed. *P < 0.05, **P < 0.01, and ***P < 0.001 in comparison to the AP group. (C) Expression levels of BAX, BCL–2, and β–actin in various animal model groups.(n = 3). (D) Corresponding ratios of BAX/β–actin. Mean ± SD data were reported for each group, and statistical significance was observed (n = 3). **P < 0.01 and ****P < 0.0001 in comparison to the AP group. (E) Corresponding ratios of BCL–2/β–actin. Mean ± SD data were reported for each group, and statistical significance was observed (n = 3). *P < 0.05, **P < 0.01, ***P < 0.001, and ****P < 0.0001 in comparison to the AP group.

4 Discussion

AP is a common disorder marked by the activation of trypsinogen and abrupt inflammation of the pancreas (26). In clinical practice, treating complex diseases using a single targeted drug is challenging (27). Currently, drugs specific to AP are lacking, and most available treatments focus on symptom relief and supportive care (26). TCM is a highly effective method for treating AP due to its various benefits, including its ability to target multiple areas and its minimal adverse reactions (28, 29). Previous animal and clinical experiments have confirmed the therapeutic impact of CH on AP, yet the precise molecular mechanisms behind it remain unclear. To investigate the therapeutic effects of CH on AP, we employed a blend of network pharmacology and experimental validation techniques to examine the active constituents, targets, networks, and pathways involved. This approach aided our understanding of the material basis and molecular mechanisms underlying its benefits. We then conducted a series of experiments to confirm our findings using network pharmacology analysis. Lately, there has been a global focus on utilizing network pharmacology for the treatment of illnesses. Network pharmacology is an efficient method for identifying ingredients and forecasting drug targets using advanced computer simulations. This study explored the potential use of network pharmacology to understand how CH can effectively and affordably treat AP. Using network pharmacology, we investigated the basic elements and mechanisms underlying the therapeutic effects of CH on AP.

TCMSP retrieval yielded 181 active compounds. The analysis of the D–C–T network demonstrated that there were 177 interconnected potential targets, indicating that CH might affect AP through mechanisms involving multiple compounds and targets. Additionally, PPI network analysis identified 14 core genes among the potential targets, including STAT3, IL6, MYC, CDKN1A, AKT1, MAPK1, MAPK14, HSP90AA1, HIF1, ESR1, TP53, FOS, and RELA. AKT1, MAPK1, MAPK3, MAPK14, IL6, STAT1, and HIF1 are closely related to AP based on wide–scale literature mining.

The precise pathophysiological mechanisms responsible for AP are still not fully understood. For this study, we conducted GO and KEGG investigations to uncover the potential molecular pathways involved in CH. Our findings validate the involvement of diverse biological processes and signaling pathways in the commencement and advancement of AP. The PI3K/AKT signaling pathway, which is one of the pathways enriched and connected to the network, is recognized as a significant contributor to inflammation associated with AP (27, 30, 31). Researchers (32–34) have also considered several other pathways as possible targets for AP treatment. These pathways include the AGE/RAGE signaling pathway (hsa04933), JAK/STAT signaling pathway (hsa04630), and TNF signaling pathway (hsa04668). The active compounds show favorable binding activity with the essential proteins of CH, as indicated by the molecular docking results.

Based on the above analysis, we performed further experimental verification and confirmed the protective effect of CH against AP. Elevated amylase and lipase are the hallmarks of AP. Combined with the pathological staining results, we also confirmed that CH reduced pancreatic injury in AP. Additionally, using western blot and Tunel staining, we further verified CH’s ability to induce apoptosis in acinar cells through the PI3K/AKT pathway, thereby alleviating severe pancreatitis.

During the initial stages of AP, acinar cell death via necrosis and apoptosis significantly affects the progression of the condition. Recent research (35) has shown that apoptosis may serve as a protective response in AP. Furthermore, studies (26, 36) have shown that triggering apoptosis in acinar cells can decrease the activation and secretion of trypsin, consequently lowering the incidence of systemic inflammatory response syndrome (SIRS). Several signaling pathways are involved in apoptosis. The PI3K/AKT pathway is essential in averting cell death, and blocking it results in higher levels of programmed cell death in pancreatic cells. This, in turn, reduces pancreatic harm and enhances the chances of survival in AP rats (37). Previous studies (38) have extensively confirmed the role of the PI3K/AKT signaling pathway in the process of inflammation, which is strongly linked to NF–ϰB and IL–6. PI3Ks play vital roles in mediating inflammatory responses. Lupia et al. (39) revealed that by deleting the PI3K gene in rats, there was a significant reduction in the damage and mortality of pancreatic acinar cells compared to rats with the wild–type gene. Earlier research (40–43) has suggested that PI3K, by activating AKT, has the ability to boost the movement of NF–ϰB into the nucleus and its activity in transcription, which is crucial in the progression of Severe Acute Pancreatitis. Furthermore, activation of the PI3K/AKT pathway was observed in both in vivo experiments with AP–induced inflammation and in vitro studies with cytokine administration. Further investigations (44) revealed that inhibiting PI3K/AKT or NF–κB could enhance the survival rates of rats with AP. These results indicate that blocking PI3K may offer the potential for preventing and treating AP. Consistent with these research, our study has shown that CH intervention effectively suppressed the activation of the PI3K/AKT pathway, resulting in the promotion of apoptosis in pancreatic acinar cells.

This investigation has certain limitations that merit further investigation. The sample size of AP–related targets in the GEO database (45) should be increased. Additionally, the potentially active compounds identified in this study require independent validation of their therapeutic efficacy against AP.

5 Conclusions

Despite the unclear comprehension of the complex pharmacological mechanisms implicated in the effectiveness of CH for treating AP, this study sought to forecast the responsible mechanisms for the defensive benefits of CH against AP through a network pharmacology–driven approach. The findings from our study suggest that CH may achieve its healing benefits by utilizing a variety of elements, objectives, and routes. The network pharmacology method holds the potential to uncover the molecular mechanisms of Traditional Chinese Medicine (TCM), including CH, by presenting valuable insights for clinical application of this formulation.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Materials, further inquiries can be directed to the corresponding author/s.

Ethics statement

The animal study was approved by The Animal Ethics Committee of the Southwest Medical University. Affiliations: Southwest Medical University. The study was conducted in accordance with the local legislation and institutional requirements. No potentially identifiable images or data are presented in this study.

Author contributions

JY: Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Writing – original draft, Writing – review & editing. Y–HJ: Conceptualization, Data curation, Visualization, Writing – original draft. XZ: Funding acquisition, Validation, Writing – review & editing. J–QY: Validation, Writing – review & editing. Y–YW: Investigation, Writing – original draft. J–QL: Methodology, Writing – review & editing. P–CZ: Writing – review & editing. W–FT: Writing – review & editing. ZL: Writing – review & editing.

Funding

The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This work was supported by the grants from the Foundation of Chinese Medicine Hospital Affiliated to Southwest Medical University (No. 2022-CXTD-01), National Natural Science Foundation of China (No. 82174264), the Strategic Cooperation Program, the Fundamental Research Funds for Central Universities, the Sichuan University (No. 2020CDLZ-18), the Sichuan Provincial Administration of Traditional Chinese Medicine Science and Technology Program (No. 2023MS416), Sichuan Science and Technology Program (2023NSFSC1808) and Science and Technology Program of Southwest Medical University Chinese and Western Medicine (2023ZYYQ13).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2024.1353695/full#supplementary-material
